Types of Western Revolvers: A Historical, Technical, and Comparative Guide to the Revolvers that Forged the Wild West

What weapon held the balance between law and chaos on the Western plains? Imagine the gleam of steel at dawn, the hammer cocking back with a dry click, and the cylinder rotating to align the chamber with the barrel: these mechanical details and that sense of concentrated power in the hand made the revolver the defining tool of an era. In this article, you will discover the types of Western revolvers, their technical evolution, the most emblematic models, how they work, and what distinguishes them. You will learn to recognize the features of a Colt Peacemaker versus a Schofield, understand the transition from black powder to smokeless, and find a practical comparison to identify replicas and historical models.

revolveres oeste 1200x675 - Types of Western Revolvers: A Historical, Technical, and Comparative Guide to the Revolvers that Forged the Wild West

We will begin by setting the historical stage: a chronology that connects the primitive matchlock with the metallic roar of the Peacemaker. Then we will explore the early revolvers, their classification by mechanism, common calibers, operation, and a comparative table of the models that dominated the Old West. Finally, we will address their technical and cultural legacy, and I will offer clear guidelines for identifying replicas and key features.

From Matchlock to Peacemaker: Chronology of Old West Weapons

Era Event
Late Middle Ages / 14th–15th Centuries
Late 14th century First portable firearms in Europe: iron barrels ignited with a match or glowing rod; low accuracy and more psychological than lethal effect.
15th–19th Centuries: Evolution of Ignition Mechanisms (“Locks”)
15th–17th Centuries (Europe) / 16th–19th Centuries (Asia) Matchlock (serpentine): lever that brought a lit match to the gunpowder.
16th–17th Centuries Wheel-lock (German origin): generated sparks by friction with pyrite; costly and prone to malfunctions.
16th–19th Centuries Flintlock: prolonged use. Appearance of the snaphance (c.1540–1550) and the “French lock” (early 17th century). In Spain, the “miquelete” (~1580) was common for almost 300 years.
Early 19th Century: Percussion System Revolution
c.1818 – subsequent decades Piston/percussion system: metallic cap with fulminate struck by the hammer. France produced percussion guns around 1818; diffusion in civilian weapons from the second decade of the 19th century and military use around 1840.
Mid-19th Century: Predecessors and Early Personal Repeating Firearms
1830–1860 Pepperbox: multiple rotating barrels (some mechanical models), considered precursors to the revolver. Example: Ethan Allen’s pepperbox (~1840, England).
1835–1836 Samuel Colt patents his revolver (1835 UK); founds Colt Patent Arms and launches the First Paterson (1836), a .36 caliber single-action revolver.
1841–1845 Development of rimfire percussion and rimfire cartridges: patented in England (Hanson & Golden, c.1841) and France (Louis Flobert, 1845).
1854–1858 Breech-loading systems and needle cartridge: Eugene Lefaucheux manufactures a needle revolver (1854); the French navy adopts it in 1856 and the Spanish army in 1858.
1857 Smith & Wesson launches a .22 caliber seven-shot rimfire revolver, beginning its role in pocket and parlor guns.
Civil War and Subsequent Decades: Consolidation and Variations
1861–1865 Remington New Model Army: popular revolver during the Civil War.
1866–1935 Remington Double Derringer (two superimposed barrels, .41) manufactured; an example of widely used pocket pistols.
late 1860s – 1870s Smith & Wesson Model 3 and variants (American, Russian, Schofield) — hinge design for quick loading; Schofield preferred by cavalry and gunfighters.
Late 19th Century: Icons of the Far West
1873 Colt Single Action Army (SAA) “Peacemaker” introduced; solid frame and use of metallic cartridges (.45 Colt and other options like .44-40). Very famous though expensive and slow to reload.
1875 Remington Model 1875 (breech-loading) used by figures like Frank James.
c.1880 (early decade) British Bulldog (Webley & Son) appears and is profusely copied.
Last decades of 19th Century – first third of 20th Century Brazilian Garruchas (double barrel, centerfire cartridge) inspired by Lefaucheux, popular in Brazil.
Evolution of Cartridges and Powders
Second half of 19th Century Transition from black powder to smokeless powder; development of more powerful cartridges (.44-40 Winchester, .45 Colt) which increased stopping power and cleaner firing.
Long Guns and the Omnipresence of the Shotgun
1860–1866 Henry Rifle (New Haven Arms): one of the first mass-produced repeating rifles.
1873 Winchester Model 1873: iconic lever-action rifle, available in calibers like .44-40; culturally dubbed “the gun that won the West,” though expensive (~$40 in 1877).
1883 onwards John M. Browning improved Winchester lever designs, culminating in the Model 1894, which would be one of the best-selling rifles in American history.
19th Century (entire century) Shotguns (especially 10-gauge side-by-side): economic and versatile weapon, widely used for hunting, stagecoach defense, and daily work; effective with buckshot at short range.
Bladed Weapons: Knives and Folding Knives
Late 18th Century – 19th Century Bowie knives (over 7 inches) popularized by Jim Bowie; folding knives for everyday use and defense, of Iberian origin and global diffusion.
Cultural Legacy
20th Century (cinema and literature) Films like “High Noon” and “Winchester ’73” solidified the romantic image of the revolver and other Western firearms. These pieces became symbols of individualism, frontier justice, and technological evolution.
Summary
Historical Summary From rudimentary barrels and matchlocks to metallic cartridge revolvers and lever-action rifles, technical innovations (percussion, cartridges, smokeless powder) shaped the weapons that defined the survival and culture of the Old West.

The Origins of the Revolver and Early Models

1794 3915 - Types of Western Revolvers: A Historical, Technical, and Comparative Guide to the Revolvers that Forged the Wild West

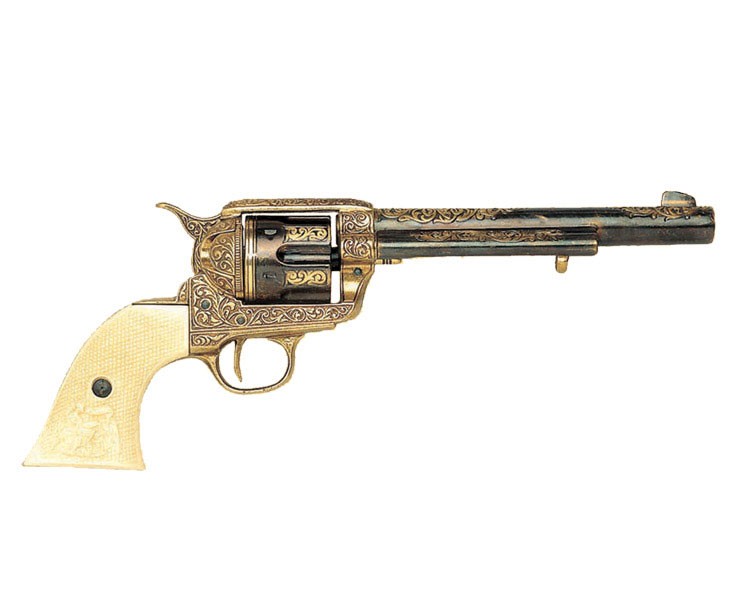

Revolver .45 caliber manufactured by S Colt, USA 1873

The revolver is defined by a rotating cylinder — the drum — which houses the chambers for the ammunition. This mechanical simplicity solved a critical need: more shots without immediately reloading. Before the modern revolver, there were experiments: multi-barrel pepperboxes, needle systems, and finally, Samuel Colt’s decisive patent in the 1830s. Colt and other craftsmen transformed a concept into a reliable and repeatable weapon.

How They Work: Essential Mechanics of the Cylinder and Firing Pin

The mechanics of the revolver are elegant in their simplicity. When the cylinder is loaded, cocking the hammer (or pulling the trigger in double action) causes it to retract. This movement usually rotates the cylinder to align a loaded chamber with the barrel. Upon release, the hammer strikes a firing pin that hits the cartridge primer and ignites the propellant. The cycle repeats each time you fire.

Historical Advantages:

  • More available shots than single-shot pistols of the era.
  • Greater mechanical reliability: fewer complex moving parts compared to some early repeating systems.
  • Simplicity of field maintenance.

Classification by Mechanism: Single-Action and Double-Action

Single-Action

Require manual cocking with the thumb before pulling the trigger. Firing results in a short trigger pull and a more consistent shot, which is why many expert shooters preferred the control of single-action models.

Double-Action

Allow firing by pulling the trigger without first cocking the hammer. The trigger pull is longer because it must move the hammer and release the firing pin, but they offer speed in self-defense situations.

Iconic Models: Types of Western Revolvers and Their Features

Not all Western revolvers were alike. Some, like the Colt Single Action Army (Peacemaker), achieved legendary status; others, such as the Smith & Wesson Model 3 and Remington, played decisive roles due to their reliability or cost. Below is a practical comparison to identify their key features.

Model Era Common Caliber Distinctive Features
Colt Single Action Army (SAA) “Peacemaker” 1873 – late 19th Century .45 Colt, .44-40 Solid frame, 6-shot cylinder, robust design and widely present in military and civilian use; cultural icon.
Colt Walker 1847–1848 .44–.45 approx. Very powerful, large size and weight; limited production and initial reliability problems that were later improved in the Dragoons.

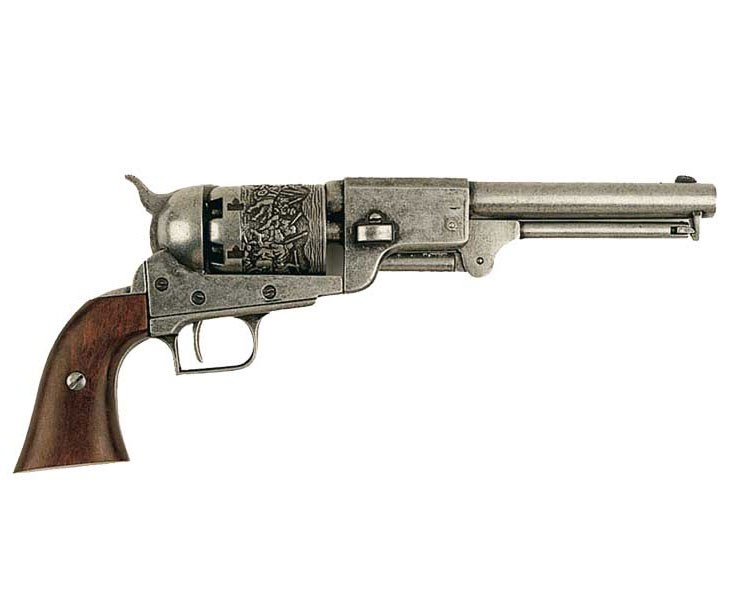

Colt Dragoon 1848–1860s .44 More robust than the Walker, cavalry-oriented; heavy with high stopping power.
Smith & Wesson Model 3 / Schofield late 1860s – 1870s .44 Russian, .45 Hinged frame design facilitates quick reloading; popular among cavalry and forces needing rapid reloading.
Remington New Model Army / 1875 Civil War – 1875 .44, .45 Solid construction, locking systems different from Colt; robust and accessible option for civilians and military.
Colt Single Action Army (SAA)
  • Typical Length: 7.5–5.5 inches of barrel depending on version
  • Use: military, civilians, ranchers
  • Distinctive: cultural symbol of the West
Smith & Wesson Schofield
  • Typical Length: 4–5 inches of barrel
  • Use: cavalry and gunfighters who needed quick reloading
  • Distinctive: hinge to open the frame

Calibers and Their Purpose: From Defense to Hunting

The calibers that dominated the Western scene varied depending on their function. For personal defense and emerging police use, calibers like the .38 Special and .45 Long Colt offered a balance between manageable recoil and stopping power. For hunting and applications where kinetic energy was paramount, the .44 Magnum and .357 Magnum —though more associated with later eras— carved out a niche due to their power. The Western tradition includes, among others:

  • .22 Rimfire (pocket guns and recreational shooting)
  • .38 Special (defense and shooting)
  • .44-40 Winchester (common due to its interoperability with Winchester rifles)
  • .45 Long Colt (.45 Colt: classic of the Peacemaker)
  • .44 Magnum, .357 Magnum (power for hunting and sport shooting)
Revólver Peacemaker latonado USA 1873 - Types of Western Revolvers: A Historical, Technical, and Comparative Guide to the Revolvers that Forged the Wild West

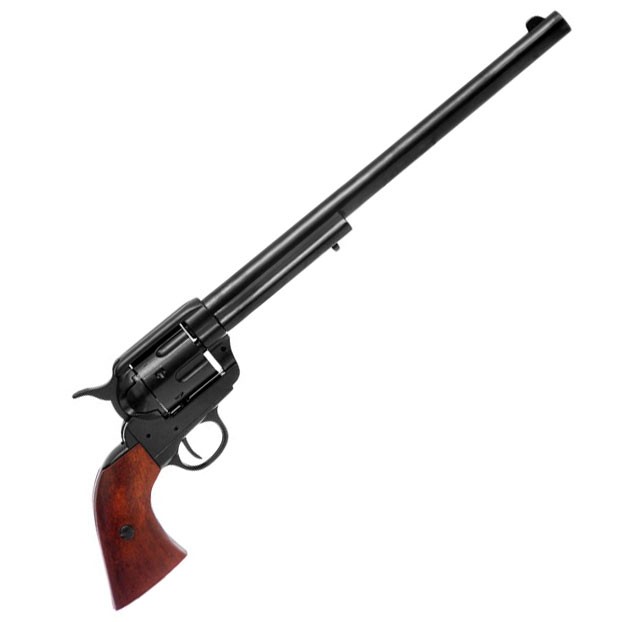

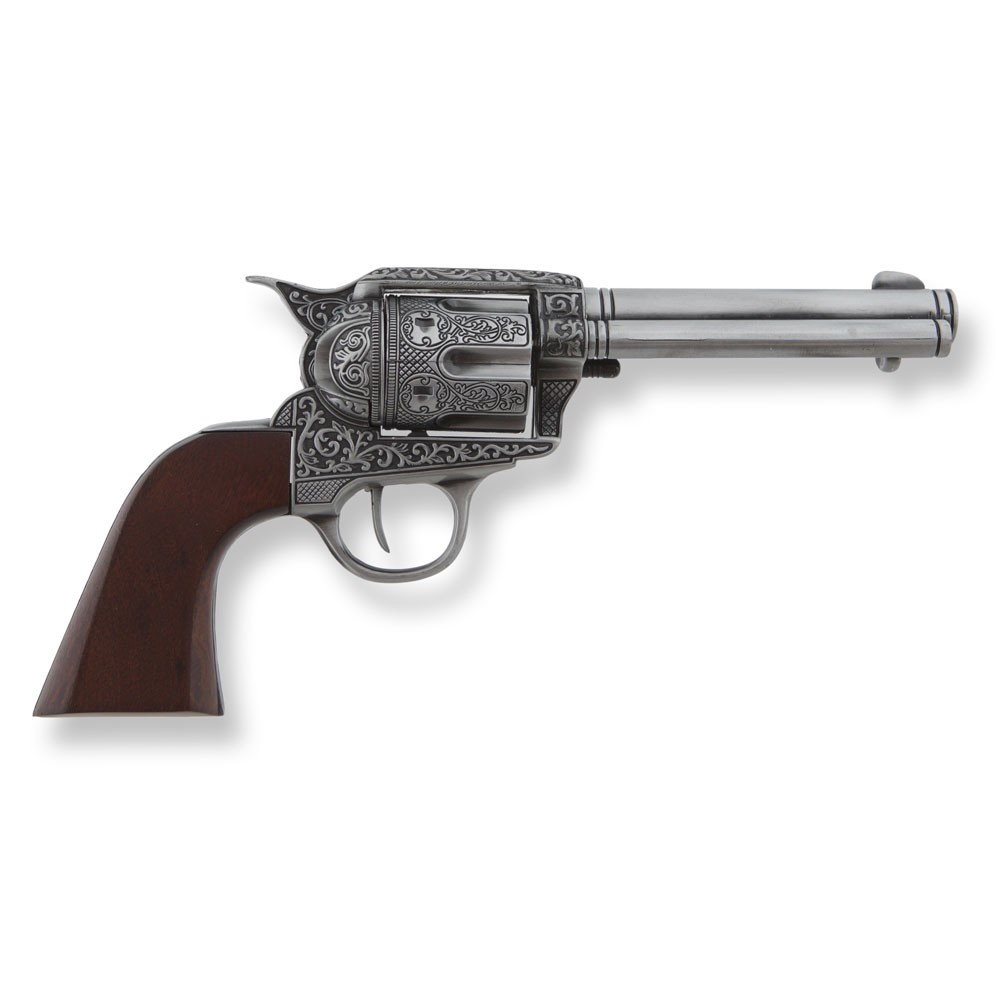

Revolver .45 caliber and long barrel. S. Colt, USA 1873

Firing Speed and Reloading Techniques

The revolver radically improved the rate of fire compared to single-shot pistols. Two factors that made a difference were the cylinder capacity and reloading methods. Some models allowed individual cartridges to be extracted and reloaded, while others used mechanical extractors or hinges that accelerated the process. Schofields were appreciated for their faster reloading on horseback.

Reloading in Combat: Historical Techniques

  • Loading with individual cartridges through the front of the cylinder (in early breech-loading versions)
  • Use of shovels or tools to push out spent casings and facilitate extraction
  • Side reloading with a hinge (as in the Schofield) that allowed for more expeditious reloading without disassembling the weapon
21 484x396 custom - Types of Western Revolvers: A Historical, Technical, and Comparative Guide to the Revolvers that Forged the Wild West

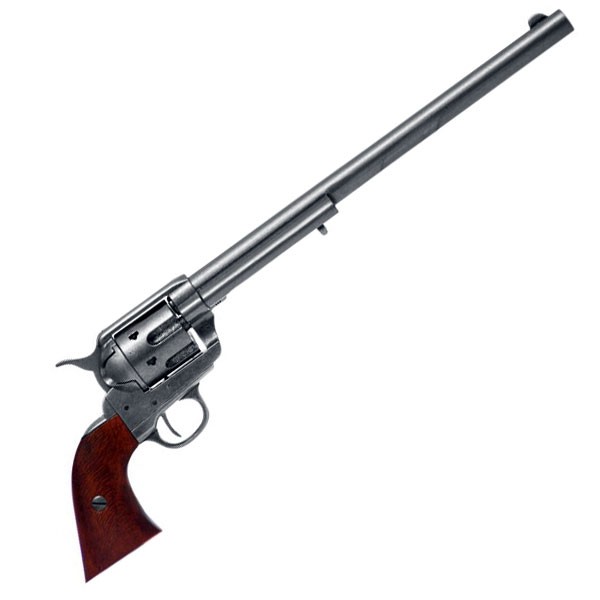

Long barrel revolver

Real Use vs. Myth: What Really Happened in the West

Cinema shaped our vision: duels at dawn, six-shooters, and instant law. The reality was more prosaic and varied. Revolvers were tools for work, self-defense, and social symbols. Many settlers used cheaper guns than Colts, and access to repeating rifles was limited by their price. The romantic image coexists with technical data: the Peacemaker was influential, but not exclusive.

Replicas, Conservation, and Features to Identify a Historical Model

If you’re looking to recognize a replica or distinguish an original, pay attention to:

  • Markings and stamps: Colt, Smith & Wesson, Remington, and others usually marked the weapon with serial numbers and logos.
  • Frame design: solid frames, hinged frames, visible extractors.
  • Barrel length and weight: affect balance and ergonomics.
  • Locking mechanism: the cylinder locking system and rotation axis provide clues about the period.

Maintenance: regular oiling of the cylinder pin, chamber cleaning, and hammer spring inspection ensure lasting operation. The simplicity of the revolver kept it in use for decades precisely because of this ease of maintenance.

Representative Products and Replicas

Over the years, replicas have allowed the material memory of the West to be preserved. Modern reproductions recreate aesthetic and mechanical details for collectors and reenactors, keeping the historical pulse in view.

Quick Comparison: When to Choose Each Type Based on Historical Use

If your interest is historical or technical, these guidelines will help you situate each model:

  • Colt SAA (Peacemaker): military and civilian icon; balance between power and cultural symbolism.
  • Schofield / S&W Model 3: priority for quick reloading; favorite of cavalry and mobile agents.
  • Remington: robustness and price, an alternative for mass civilian use.
  • Walker / Dragoon: raw power, more suitable for environments where size and weight were not limiting factors.

Quick Identification Table

Feature Colt SAA Schofield Remington
Frame Type Solid Frame Hinged for opening Solid frame with distinct extraction
Reloading Time Medium Fast Slow–Medium
Typical Use Military and Civilian Cavalry Civilians and Armies

Technical and Cultural Legacy

Western revolvers have left their mark on modern firearm design. Their mechanical solutions — such as the rotating cylinder and simple operation — remain engineering lessons: robustness, maintainability, and effectiveness in adverse conditions. Culturally, their presence in cinema and literature consolidated archetypes and symbols that persist today.Revólver Confederado LeMat Guerra Secesión - Types of Western Revolvers: A Historical, Technical, and Comparative Guide to the Revolvers that Forged the Wild West

Understanding the types of Western revolvers is more than just recognizing a model: it’s about comprehending how technology responded to the needs of a frontier and how these machines forged narratives. From the fierceness of the Colt Walker to the compact elegance of the Schofield, each design tells a story of use, innovation, and adaptation.

Now that you know the keys — chronology, mechanisms, calibers, and identifying features — you can look at a replica with more expert eyes: distinguish a Schofield hinge, identify the barrel measurements of the Peacemaker, or appreciate why certain ammunition was preferred in the field or in the city.
